Beam 4.0 Pro
For the machines that have more to say.
Level, conductivity and pressure for the machines that need more than temperature and flow.
Three things only the Pro can do.
- The Pro takes a level, conductivity or pressure sensor on top of the temperature and flow every Beam reads.Beam 4.0 ProLive
- Conductivity180µS/cm
- Flow12.4L/min
- Temperature21°C
- The Pro runs on two mobile networks, NB-IoT and LTE-M, instead of one. If one signal is weak in a corner of the building, it switches to the other.Connection
- PrimaryConnected
- BackupStandby
- The battery still lasts up to five years. If there is a socket nearby, the Pro can run on an external supply instead, and it switches back to the battery by itself if that power is lost.Power
- Mains 230VActive
- Battery5-year backup

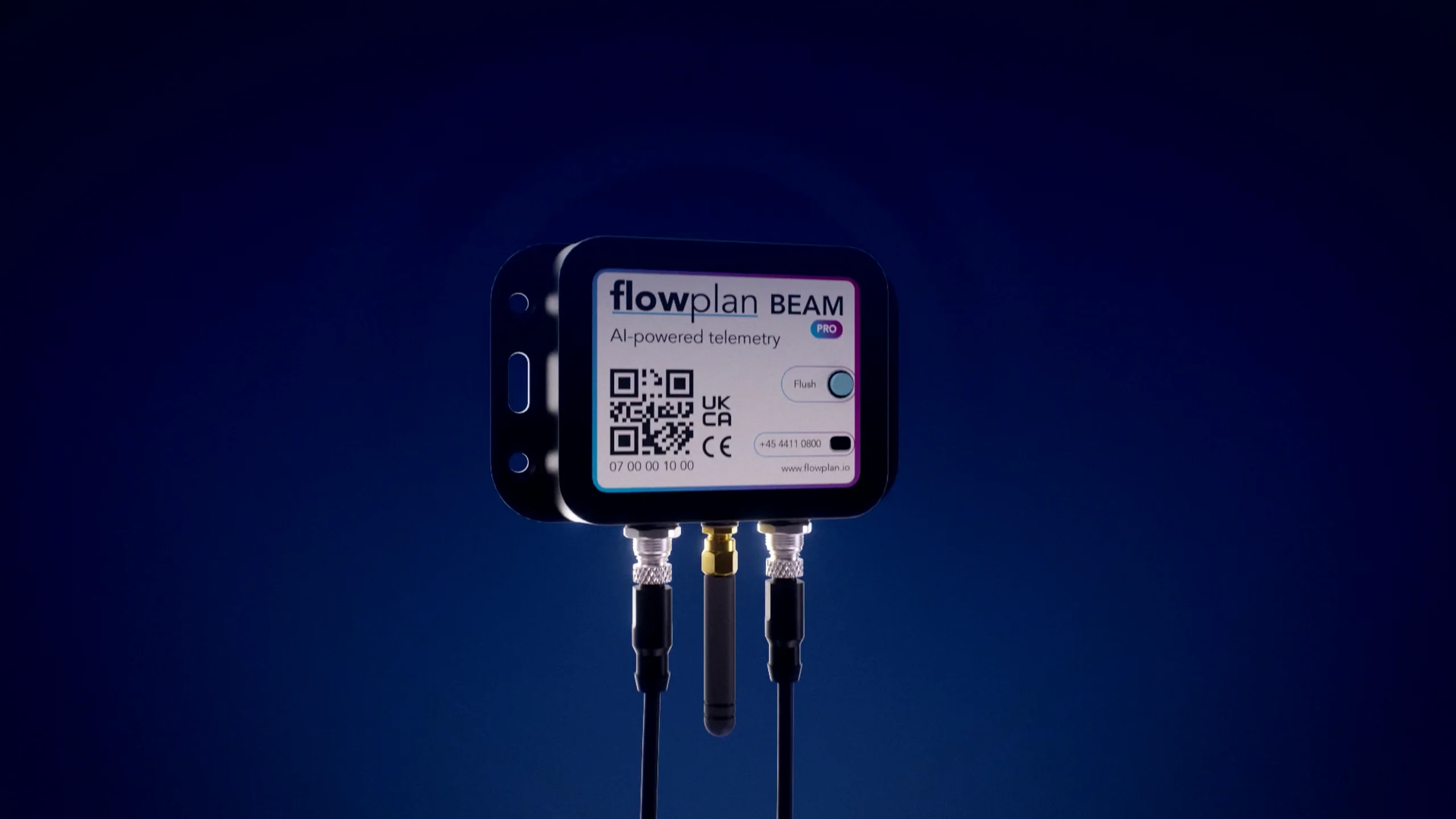

A closer look at the hardware.
Size and weight
110 × 70 × 28 mm and about 120 g, in an ABS housing designed and built by Flowplan.
Battery and power
Up to five years on one replaceable battery, the same as a Beam. If there is a socket nearby, it can run on an external supply and switches back to the battery by itself if the power goes.
Sensor inputs
Beam 4.0 Pro takes several types of external sensors: conductivity, distance and level, pressure, and temperature. Fit one at install or add it later. Each transmitter takes one of conductivity, level and pressure.
Connectivity
It runs on dedicated IoT networks with its own SIM card. No Wi-Fi, and nothing to ask the venue's IT for.
Install
It can be mounted in several ways. We recommend screws or zip ties, then the sensor goes onto the pipework.
Durability
Built to keep working in tough conditions. Rated IP66, so dust and water stay out. It can sit under a counter, behind a machine or in a damp utility room.
Level. Conductivity. Pressure.
The most flexible telemetry we've built.
Beam 4.0 Pro is the most capable product Flowplan has shipped. One transmitter reads temperature, flow, level, conductivity or pressure on any machine, whatever the brand, on its own SIM card, for up to five years on one battery.
“Professional water quality monitoring has traditionally relied on expensive equipment and manual readings on site. With the new Beam 4.0 Pro, we’re bringing it online at a groundbreaking price.”
Marcus Rosholm, CEO
Three more things it can measure.
Pressure
Coming soonWater pressure changes when a line or a filter starts to block. The Pro reports it every day, so you can see a blockage coming and plan the visit.
Level
A level sensor reads how much is left in a tank, such as salt in a water softener or liquid in a container. You see it running low before someone finds it empty.
Conductivity
Conductivity is a measure of how much is dissolved in the water. Litres tell you how much water a filter has treated, not what is in it. The sensor reads water quality directly, so you know when the water is no longer clean enough, whether for a coffee machine or for an autoclave that runs on ultrapure water.
Tell me when pressure ships
The pressure sensor is not released yet. Leave your email and we will send you one message on the day it is, and nothing else.
Beam 4.0 and Beam 4.0 Pro.
Same software and the same network. The Pro adds three readings: level, conductivity and pressure, one of them per transmitter.
Do I need Beam 4.0 Pro for temperature or volume?
No. The standard Beam 4.0 reads temperature and flow, and that is what most machines need. Beam 4.0 Pro is for level, conductivity or pressure.
Can I add a sensor later?
Yes. You can fit a level, conductivity or pressure sensor whenever you are ready. A transmitter takes one of them at a time, so plan the Pro around the reading the machine needs. For temperature and flow alone, a standard Beam 4.0 is enough.
Is the install different?
No. It fits the same way and takes the same few minutes, through the same app.
Can it read pressure, level and conductivity at the same time?
No. The transmitter takes one of the three, so you order the sensor for the reading the machine needs. Flow and temperature still run alongside it, and the sensor can be changed later.
The readings land in the same software.
